Kubernetes部署代码仓库Gitea

Gitea 是一个开源社区驱动的轻量级代码托管解决方案

https://docs.gitea.io/zh-cn/comparison/

  • 支持活动时间线
  • 支持 SSH 以及 HTTP/HTTPS 协议
  • 支持 SMTP、LDAP 和反向代理的用户认证
  • 支持反向代理子路径
  • 支持用户、组织和仓库管理系统
  • 支持添加和删除仓库协作者
  • 支持仓库和组织级别 Web 钩子(包括 Slack 集成)
  • 支持仓库 Git 钩子和部署密钥
  • 支持仓库工单(Issue)、合并请求(Pull Request)以及 Wiki
  • 支持迁移和镜像仓库以及它的 Wiki
  • 支持在线编辑仓库文件和 Wiki
  • 支持自定义源的 Gravatar 和 Federated Avatar
  • 支持邮件服务
  • 支持后台管理面板
  • 支持 MySQL、PostgreSQL、SQLite3, MSSQL 和 TiDB(实验性支持) 数据库
  • 支持多语言本地化(21 种语言)

Database

Fetch MySQL Helm Charts

helm repo add stable https://mirror.azure.cn/kubernetes/charts
helm repo add incubator https://mirror.azure.cn/kubernetes/charts-incubator
cd ~/k8s/helm/charts
helm search mysql --version 1.6.4
helm fetch stable/mysql --version 1.6.4
tar -zxf mysql-1.6.4.tgz
cd mysql
# modify values.yaml 详见下文
helm install --name mysql -f values.yaml . --namespace devops
helm upgrade -f values.yaml mysql . --namespace devops
helm delete --purge mysql # It's Dangerous

MySQL Helm values.yaml

划重点

  1. 创建gitea库、用户、密码
  2. openebs动态持久卷storageClass
  3. 设置默认字符集initializationFiles
  4. metallb service服务暴露
    image: "mysql"
    imageTag: "5.7.30"
    strategy:
      type: Recreate
    mysqlRootPassword: Root@123
    mysqlUser: gitea
    mysqlPassword: Gitea@123
    mysqlDatabase: gitea
    imagePullPolicy: IfNotPresent
    persistence:
      enabled: true
      ## database data Persistent Volume Storage Class
      ## If defined, storageClassName: <storageClass>
      ## If set to "-", storageClassName: "", which disables dynamic provisioning
      ## If undefined (the default) or set to null, no storageClassName spec is
      ##   set, choosing the default provisioner.  (gp2 on AWS, standard on
      ##   GKE, AWS & OpenStack)
      ##
      # storageClass: "-"
      storageClass: "openebs-hostpath"
      accessMode: ReadWriteOnce
      size: 10Gi
      annotations: {}
    securityContext:
      enabled: false
      runAsUser: 999
      fsGroup: 999
    resources:
      requests:
        memory: 256Mi
        cpu: 100m
    configurationFilesPath: /etc/mysql/conf.d/
    configurationFiles: {}
    initializationFiles:
      first-db.sql: |-
        CREATE DATABASE IF NOT EXISTS first DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
    metrics:
      enabled: false
      image: prom/mysqld-exporter
      imageTag: v0.10.0
      imagePullPolicy: IfNotPresent
      resources: {}
      annotations: {}
        # prometheus.io/scrape: "true"
        # prometheus.io/port: "9104"
      livenessProbe:
        initialDelaySeconds: 15
        timeoutSeconds: 5
      readinessProbe:
        initialDelaySeconds: 5
        timeoutSeconds: 1
      flags: []
      serviceMonitor:
        enabled: false
        additionalLabels: {}
    service:
      # annotations: {}
      annotations:
        metallb.universe.tf/address-pool: default
      ## Specify a service type
      ## ref: https://kubernetes.io/docs/concepts/services-networking/service/#publishing-services---service-types
      type: LoadBalancer
      port: 3306
      # nodePort: 32000
      # loadBalancerIP:

Gitea

划重点

  1. openebs动态持久卷storageClass
  2. metallb service暴露ssh端口
  3. ingress service暴露http端口
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      namespace: devops
      name: gitea-deployment
      labels:
        app: gitea
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: gitea
      template:
        metadata:
          labels:
            app: gitea
        spec:
          containers:
          - name: gitea
            image: gitea/gitea:1.12.2
            ports:
            - containerPort: 3000
              name: gitea-http
            - containerPort: 22
              name: gitea-ssh
            volumeMounts:
            - mountPath: /data
              name: gitea-data
          volumes:
          - name: gitea-data
            persistentVolumeClaim:
              claimName: gitea-pvc
    ---
    apiVersion: v1
    kind: PersistentVolumeClaim
    metadata:
      name: gitea-pvc
      namespace: devops
    spec:
      storageClassName: openebs-hostpath
      accessModes:
        - ReadWriteOnce
      resources:
        requests:
          storage: 5Gi
    ---
    kind: Service
    apiVersion: v1
    metadata:
      name: gitea-service
      namespace: devops
      annotations:
        metallb.universe.tf/address-pool: default
    spec:
      selector:
        app: gitea
      type: LoadBalancer
      ports:
      - name: gitea-http
        port: 3000
        targetPort: gitea-http
      - name: gitea-ssh
        port: 22
        targetPort: gitea-ssh
    ---
    apiVersion: networking.k8s.io/v1beta1
    kind: Ingress
    metadata:
      name: gitea-ingress
      namespace: devops
      annotations:
        nginx.ingress.kubernetes.io/rewrite-target: /
        nginx.ingress.kubernetes.io/load-balance: "ip_hash"
        nginx.ingress.kubernetes.io/upstream-hash-by: "$request_uri"
    spec:
      rules:
      - host: gitea.boer.xyz
        http:
          paths:
          - path: /
            backend:
              serviceName: gitea-service
              servicePort: 3000

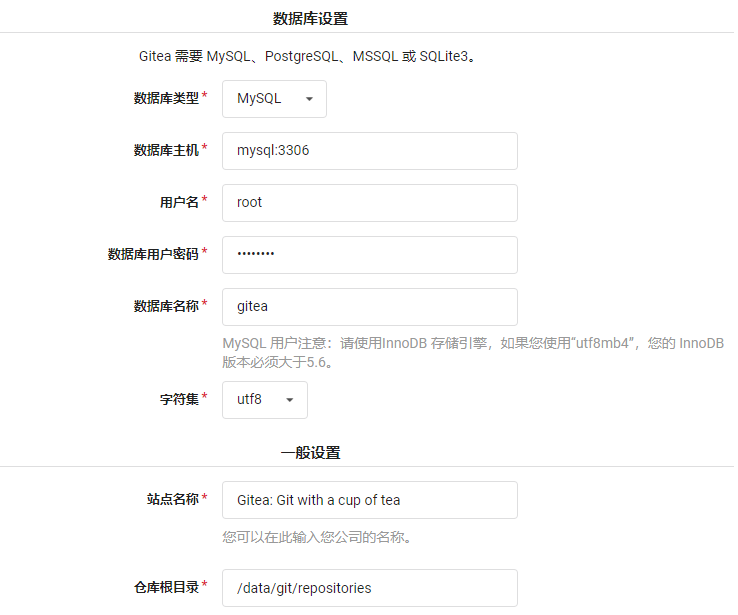

Gitea按照引导

gitea_installer

  • 数据库类型:MySQL
  • 数据库主机:mysql service-name:3306
  • 用户/密码/数据库: gitea
  • http域名:gitea.boer.xyz (ingress域名)
  • ssh通过域名:gitea.boer.xyz (与ingress域名一致)
  • 最下面创建管理员账号(如果未创建,则第一个注册账号为管理员)

添加SSHKey,开始使用吧!
